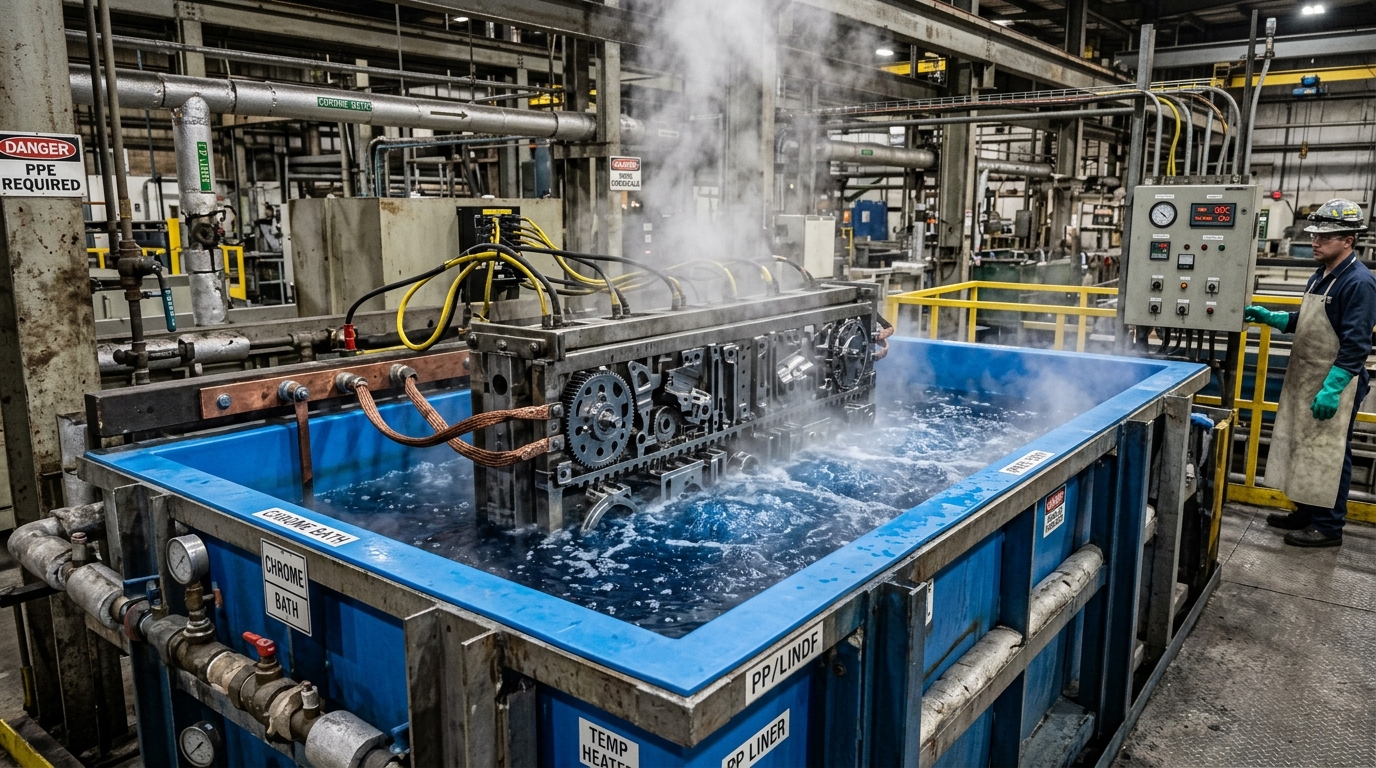

Electroplating process baths combining strong acid concentrations (CrO3, H2SO4, HCl) with operating temperatures up to 95°C and high electrical current densities will destroy unreinforced PVC or rubber tank linings within 12 to 24 months. Dual-laminate construction—integrating a glass-fleece backed thermoplastic inner liner with a structural FRP outer shell—prevents thermal expansion shear and guarantees a 20+ year tank lifespan.
Metal finishing facilities operating hard chrome plating lines, sulfuric acid anodizing tanks, electroless nickel baths, and acid zinc plating cells face aggressive chemical and thermal stress profiles. Chemical attack from concentrated chromic or hydrofluoric acid at elevated temperatures rapidly degrades standard rubber or unreinforced plastic liners, leading to pinholes, chemical bypass, and eventual structural steel shell degradation.
Selecting the optimal barrier lining requires evaluating not just chemical compatibility, but also the permeation kinetics of water and gas molecules through the polymer structure under high temperatures. When acid molecules permeate the liner, they react with the structural backing, causing liner debonding, localized blistering, and sudden tank collapse.
Thermoplastic Lining Selection Matrix by Bath Chemistry
Selecting the inner corrosion barrier polymer depends on chemical concentration, thermal limits, and oxidation potential:
| Electroplating Process | Operating Temp & Chemistry | Optimal Thermoplastic Liner | Bonding Fleece & Backing |
|---|---|---|---|
| Hard Chrome Plating | 60°C - 85°C | 250 g/L CrO3 + H2SO4 | PVDF (Polyvinylidene Fluoride) | Glass Fleece / Vinyl Ester FRP |
| Sulfuric Acid Anodizing | 18°C - 65°C | 15-20% H2SO4 | PP-H (Alpha Homopolymer) | Polyester Fleece / FRP |
| Electroless Nickel | 85°C - 95°C | Nickel Sulfate + hypophosphite | PVDF / ECTFE (Halar) | Glass Fleece / High-Temp Vinyl Ester |
| Alkaline Degreasing Bath | 70°C - 90°C | NaOH + Silicates | PP-C (Co-Polymer) | Polyester Fleece / Isophthalic FRP |
PVDF features alternating carbon-hydrogen and carbon-fluorine bonds, providing high crystallinity and chemical stability against strong acids and hot halogens. In contrast, PP-H offers cost-effective chemical resistance in non-oxidizing acid baths up to 85°C, but experiences rapid chemical swelling and brittleness when exposed to chromic acid concentrations exceeding 50 g/L.
Thermal Expansion Differential & DVS Welding Standards
A critical engineering challenge in dual-laminate plating tank design is managing the thermal expansion differential between the inner thermoplastic liner and the outer structural FRP laminate:
Thermal Expansion Mismatch Differential Equation
ΔL = L_0 × (α_liner - α_FRP) × ΔT
Coefficient Values:
α_PP = 150 × 10^-6 / K | α_PVDF = 120 × 10^-6 / K | α_FRP = 20 × 10^-6 / K
At ΔT = 70°C, a 4-meter long tank experiences 36.4 mm of differential thermal expansion shear!
To withstand this thermal expansion shear without liner debonding, GPPL utilizes glass-fleece backed thermoplastic sheets conforming to DVS 2207 / DVS 2208 German welding standards:
CNC Thermoplastic Bending
Sheets are hot-gas welded using automatic extrusion welders with temperature-controlled nitrogen shielding, ensuring high weld factor efficiency.
Mechanical Fleece Anchor
The polyester or glass fleece backing embeds directly into the primary vinyl ester resin layer during FRP lay-up, creating a high-strength bond interface.
High-Voltage Spark QC
100% of internal welds undergo 15 kV - 20 kV Non-Destructive Spark Testing per DVS 2212 to verify zero pinholes and weld integrity.
All thermoplastic welds must be executed by certified operators in accordance with DVS guideline documents. Butt-fusion welding is preferred over hand welding for all longitudinal sheet joins, as it achieves a weld strength factor exceeding 0.9. For corner joins and nozzle attachments, hot-gas extrusion welding using matching PVDF or PP filler rods is utilized, ensuring a solid, homogenous weld seam without localized stress points.
Automotive Component Case Study: Hard Chrome Plating Upgrade
Prior to replacing the tanks, the automotive plant suffered from frequent shutdowns due to copper-anode chemical leaks, which contaminated the wastewater treatment line. The new PVDF-FRP dual-laminate tanks eliminated all leak paths. By designing the tanks with an external structural FRP casing reinforced with heavy-duty structural steel channels, the tanks supported high-weight anode/cathode buses without any wall deflection, maximizing safety and operational reliability.
Preventative Leak Detection and Maintenance Standards
Maintaining a dual-laminate electroplating vessel requires continuous preventative maintenance and inspection. Process engineering standards mandate annual high-voltage spark testing across all internal thermoplastic welds using a conductive backing tape or liquid film. Any minor pinholes or weld cracks must be repaired immediately using extrusion welding rods to prevent chemical seepage behind the liner. Furthermore, operators must monitor the interstitial space between the inner liner and outer structural FRP casing. Integrating a continuous dry-vacuum leak detection system or visual weep holes at the tank base provides early warning of liner failure, allowing maintenance teams to schedule repairs during normal weekend shutdowns and preventing catastrophic chemical spills onto the concrete containment pad.
Engineering Conclusion & Equipment Customization
Engineering dual-laminate electroplating tanks requires precise polymer matching, certified DVS welding procedures, and finite element stress modeling. At Ghaziabad Polymers Pvt. Ltd., we fabricate custom PP-FRP, PVDF-FRP, and PVC-FRP plating lines engineered for decades of faultless performance. Our engineering department verifies every design with FEA structural simulation to confirm compliance with global standards, ensuring your plating line remains leak-free under high-temperature corrosive conditions.
