⚡ Refinery Infrastructure Insight
In acidic, saline, or petrochemical atmospheres, Hot-Dip Galvanized (GI) cable ladders experience zinc depletion rates exceeding 15 μm/year. Once bare steel is exposed, localized rusting causes sharp jagged ladder rungs that slice cable insulation during thermal movement. Pultruded Vinyl Ester FRP cable trays provide complete corrosion immunity, zero grounding maintenance, and a certified 25-year service life.

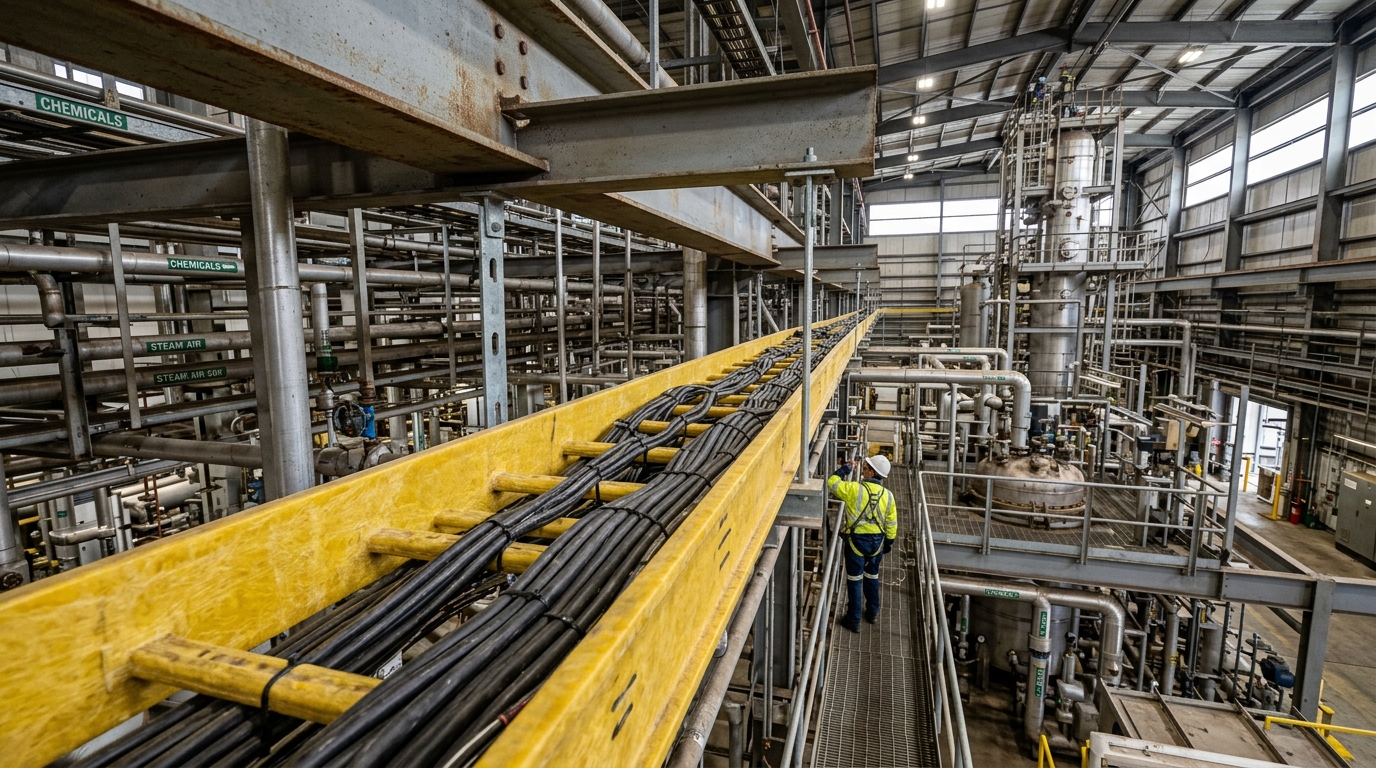

Electrical power distribution and instrument cabling form the nervous system of modern chemical refineries, offshore platforms, and fertilizer complexes. Overhead cable ladders must support hundreds of kilograms of high-voltage cabling across long support spans under continuous exposure to acidic fumes (HCl, H2SO4), sulfurous gases (H2S, SO2), and coastal salt fog. Historically, galvanized steel (GI) was selected due to lower initial material costs, but high lifecycle corrosion failures have pushed refinery asset managers toward advanced composites.
Zinc Depletion Kinetics in Severe Chemical Atmospheres
Galvanized steel relies on a sacrificial zinc coating (typically 610 g/m² or 85 μm thickness per ISO 1461). In mild rural environments, zinc corrodes at under 1 μm/year. However, in industrial chemical zones (ISO 12944 Category C5-I / CX), acid condensation lowers surface pH below 4.0, accelerating zinc dissolution:
Zinc Dissolution & Life Expectancy Calculation
Depletion Rate (r_zinc) = 15 to 25 μm / year [C5-I Industrial Atmosphere]
Service Life to First Rust (T_rust):
T_rust = Initial Coating Thickness (85 μm) / r_zinc (20 μm/yr) = 4.25 Years
After 4 to 5 years, GI trays lose structural cross-section, requiring dangerous shutdown work to cut, remove, and replace degraded tray segments above live chemical lines. Furthermore, in the presence of localized moisture containing dissolved chloride or sulfate salts, galvanized steel experiences accelerated galvanic corrosion at connection bolts, splice plates, and cut edges, causing sudden mechanical failure of support brackets under cable loads.
Mechanical Strength & Dielectric Isolation Properties
Pultruded FRP cable ladders are manufactured by drawing continuous glass fiber rovings (65% glass load) through a bath of Isophthalic or Vinyl Ester resin. Unlike metallic trays, FRP provides superior electrical isolation, high dielectric resistance, and excellent strength-to-weight characteristics:
High Dielectric Strength
Dielectric rating > 10 kV/mm prevents ground faults, short-circuit flashovers, and static charge accumulation, eliminating conductor-to-tray arcing hazards.
Weight Reduction
Weighs 40% less than steel and 20% less than aluminum, reducing structural dead load on piperacks and eliminating heavy crane requirements during installation.
Zero Grounding Cables
Non-conductive polymer matrix eliminates the labor-intensive requirement for copper bonding jumpers across tray joints, reducing grounding cable material overheads.
The high glass-to-resin ratio in pultruded profiles ensures that the composite material possesses high longitudinal tensile and flexural strength, comparable to structural steel. Because fiberglass-reinforced polymers do not undergo plastic yield deformation under design loads, they maintain their geometric alignment over decades, preventing cable sagging and localized stress accumulation on electrical connections.
NEMA FG-1 Structural Load Sizing Matrix & Deflection
FRP cable ladders are certified according to NEMA FG-1 (Fiberglass Cable Tray Systems). Load classes define allowable cable weight per linear foot over specified support spans, with a safety factor of 1.5 times the design working load:
| NEMA FG-1 Load Class | Design Working Load | Recommended Support Span | Safety Factor |
|---|---|---|---|
| Class 8C | 100 lbs/ft (149 kg/m) | 8 Feet (2.44 m) | 1.5 × Working Load |
| Class 12C | 100 lbs/ft (149 kg/m) | 12 Feet (3.66 m) | 1.5 × Working Load |
| Class 20C (Heavy Duty) | 100 lbs/ft (149 kg/m) | 20 Feet (6.10 m) | 1.5 × Working Load |
Under NEMA FG-1, the deflection of the cable tray is evaluated under full working load. For chemical refinery applications, structural engineers typically design for a maximum deflection of 1/200th of the span length to minimize mechanical strain on cable insulation jacket materials. Our pultruded side rail shapes are optimized with I-beam geometries to maximize the section modulus, providing high rigidity over extended support spans up to 6 meters.
25-Year Life Cycle Cost Analysis (LCCA) Metric Breakdown
While the initial purchase cost of vinyl ester FRP cable trays is approximately 30% higher than hot-dip galvanized steel, the lifecycle economics reveal a different story. In acidic process environments, steel trays must be replaced every 5 to 6 years because of structural thinning. This requires multiple cycles of decommissioning, cable removal, tray installation, and cable pull-back, accompanied by production shutdowns. Over a 25-year refinery lifespan, the total cost of maintaining a galvanized steel system (including material, labor, and shutdown costs) is over three times that of a maintenance-free FRP composite installation.
Installation Guidelines and Thermal Expansion Joints
When installing pultruded FRP cable trays across extended pipe racks, structural installation crews must account for composite thermal expansion characteristics. While the longitudinal coefficient of thermal expansion is low, long tray runs exceeding 30 meters require the integration of expansion guide plates and loose-bolted splice joints. These joints allow the composite ladder to expand and contract freely without buckling or bowing. Standard metallic support brackets should be insulated with thin neoprene pads to prevent direct abrasive wear against the FRP side rails during temperature cycles. Additionally, all field cuts, drilled holes, and exposed edges must be sealed immediately with a matching vinyl ester sealing resin to prevent moisture ingress into the glass fiber rovings, which preserves structural shear strength in marine or humid environments.
Engineering Conclusion & Facility System Specification
Specifying pultruded FRP cable trays guarantees electrical safety, eliminates grounding overheads, and prevents expensive plant shutdowns. At Ghaziabad Polymers Pvt. Ltd., we engineer Class 1 fire-retardant (ASTM E84 < 25) cable ladders, solid bottom trough trays, and pultruded fittings engineered for severe industrial service. Our systems are manufactured using premium resins with added UV inhibitors to withstand intense outdoor solar exposure without fiber blooming or color degradation, ensuring structural and chemical durability in the harshest refining environments.
