⚡ Structural Mechanics Insight
Pultruded FRP gratings feature continuous glass roving concentrations exceeding 65% by weight aligned directly along the I-beam bearing bars. This delivers a flexural modulus (E = 28 GPa) that is 3x stiffer than conventional molded square-mesh gratings, enabling wider support spans with zero permanent plastic deformation under industrial equipment loads.

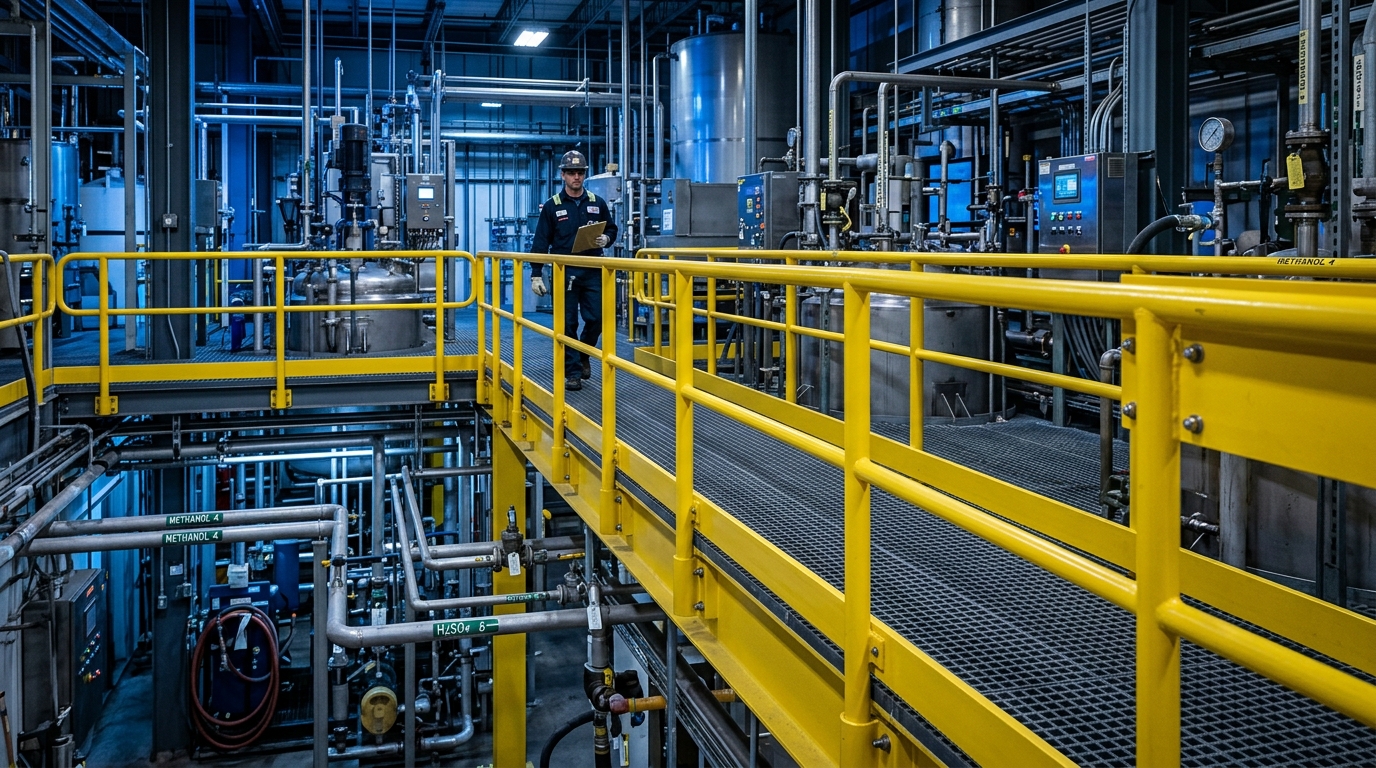

Workway platforms, trench covers, and catwalks in chemical manufacturing, oil refineries, and wastewater treatment plants must maintain high structural integrity under continuous pedestrian and rolling wheel loads. Specifying walkway gratings requires evaluating orthotropic flexural mechanics, international safety standards, and anti-slip grit durability.
Unlike metal gratings that experience uniform elastic properties in all directions, fiberglass-reinforced composites exhibit orthotropic properties. The structural capacity is concentrated along the longitudinal axis of the pultruded bearing bars. Failing to orient these bars perpendicular to the support beams can lead to immediate structural failure under nominal loads.
Orthotropic Flexural Mechanics & Beam Deflection Calculations
Pultruded gratings are composite beams. Under a uniform pedestrian working load (w), maximum mid-span deflection (δ) is governed by Euler-Bernoulli beam theory:
Beam Deflection Formula for Simply Supported Grating Spans
Deflection (δ) = (5 × w × L^4) / (384 × E_l × I_x)
Design Thresholds:
1) Pedestrian Walkways (OSHA / AS 1657): δ_max ≤ L / 200 or 10 mm
2) Heavy Rolling Traffic (Forklifts / Carts): δ_max ≤ L / 300
E_l = Longitudinal Modulus (28 GPa) | I_x = Moment of Inertia per meter width
In addition to structural deflection, engineering teams must evaluate the shear modulus (Gxz) when calculating high-load short spans, as shear deformation accounts for up to 15% of the total displacement in composite materials. Pultruded gratings resolve this by utilizing high-strength cross-rods that mechanically lock into the bearing bars, distributing localized wheel loads across adjacent panels to prevent single-point loading failure.
Key International Standards & Safety Compliance
For high-risk environments, structural composites must comply with strict testing protocols:
ASTM E84 Class 1
Flame Spread Index < 25. Custom vinyl ester formulations incorporate halogenated additives to ensure self-extinguishing behavior inside indoor chemical plants.
DIN 51130 R13 Grit
Evaluates slip resistance under oil-slicked conditions. Coarse quartz grit embedded into the surface during curing achieves maximum R13 anti-slip safety.
OSHA 1910.28
Mandates 4:1 ultimate structural safety factor above specified design working loads, protecting workers from unexpected structural failure.
Fire retardancy is critical for offshore oil rigs and closed chemical galleries. Standard polyester resins will burn and generate toxic smoke when exposed to open flame. GPPL utilizes brominated vinyl ester resins combined with antimony trioxide synergists, meeting ASTM E-84 Class 1 requirements and self-extinguishing limits per UL 94 V-0, ensuring high safety levels under severe industrial conditions.
Load Capacity Summary Table (Standard 38mm Depth Pultruded Grating)
The following table outlines the load-bearing capacities and deflection limits for a standard 38mm thick pultruded I-beam grating (60% open area) under varying span lengths:
| Span Width (mm) | Uniform Working Load (kg/m²) | Concentrated Line Load (kg/m) | Deflection at Working Load |
|---|---|---|---|
| 600 mm | 2,450 kg/m² | 1,120 kg/m | < 3.2 mm (L/187) |
| 900 mm | 1,080 kg/m² | 740 kg/m | < 4.5 mm (L/200) |
| 1,200 mm | 590 kg/m² | 480 kg/m | < 6.0 mm (L/200) |
For applications experiencing heavy rolling traffic, such as chemical drumming areas or loading docks, the concentrated wheel load must be checked against the transverse shear capacity of the cross-rods. Using solid-top pultruded plates bonded to the grating grid provides additional load distribution, preventing local bar deformation and extending the platform service life.
Chemical Refinery Walkway Installation Case Study
The original steel catwalks suffered from severe atmospheric corrosion, with rust flakes falling onto equipment below. The installation of GPPL pultruded gratings resolved the safety hazards and reduced structural weight by 55%, simplifying support bracing design. Furthermore, the embedded quartz grit surface prevented slips during heavy monsoon seasons, demonstrating the dual-benefit of composite structural materials.
Fastening Systems and Structural Installation Guidelines
Structural compliance for walkway gratings is heavily dependent on the fastening systems used to anchor the grating panels to the underlying structural steel support members. Under design live loads, unanchored panels can slide or flip, creating immediate falling hazards for plant personnel. GPPL pultruded gratings utilize 316 stainless steel M-clips, G-clips, or J-clips to secure the panels firmly to the flange of structural beams. A minimum of four clips per panel is recommended for standard rectangular panels, with clip spacing not exceeding 1.2 meters. During installation, structural crews must ensure a minimum bearing support of 40mm on all sides to guarantee proper load transfer. Any field cuts around pipe penetrations or structural columns must be reinforced with extra support angles to preserve load ratings and prevent edge sagging.
Engineering Conclusion & Grating Profile Selection
Choosing pultruded FRP gratings ensures compliance with international safety codes while reducing structural maintenance costs. Ghaziabad Polymers Pvt. Ltd. manufactures high-capacity pultruded I-bar and T-bar gratings, complete with solid cover options and UV-resistant resin systems. Contact our engineering team for custom load calculations and layout drawings tailored to your plant requirements.
