Manufacturing commercial acidic toilet cleaner requires diluting commercial 33% Hydrochloric Acid (HCl) down to 9% - 10.5% concentration, followed by precision inline dosing of ethoxylated amine surfactants and blue acid-stable dyes. Because acid dilution generates significant exothermic heat (ΔHmix = −74.8 kJ/mol), process vessels must feature internal cooling coils or external graphite heat exchangers integrated with zero-leak magnetic drive pumps.
The consumer cleaning goods sector relies on high-speed, automated production lines for acidic bowl cleaners. However, handling concentrated HCl fumes, managing exothermic blending heat, and preventing micro-corrosion across pumps, pipe manifolds, and filling heads demands specialized chemical plant engineering. Relying on sub-standard metal piping or basic plastic tanks will lead to rapid stress cracking, environmental pollution, and dangerous work safety conditions.
Designing a fully automated chemical plant requires careful synchronization of process instrumentation, thermodynamic control systems, and corrosion-resistant composite materials. From bulk acid unloading stations to automatic high-precision packaging machines, every step must be designed for chemical containment and operational efficiency.

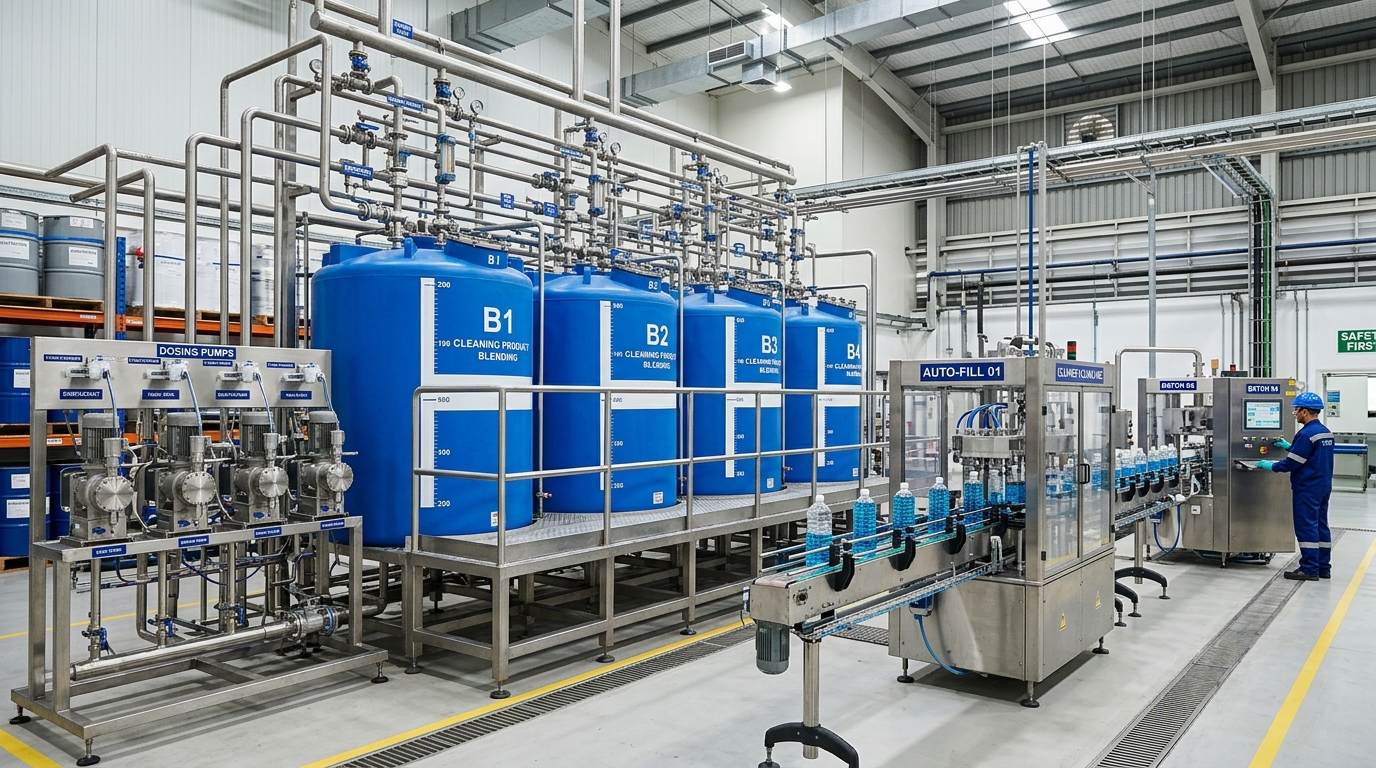

Automated Chemical Blending & Filling Process Flow
A turnkey manufacturing facility operates across four distinct process stages, fully monitored via PLC panel interfaces:
Bulk 33% HCl Receiving
Unloaded from road tankers into 30 KL dual-laminate PP-FRP storage tanks fitted with ultrasonic level transmitters, overflow sensors, and wet fume scrubbers.
Thermodynamic Dilution
Metered demineralized water and acid undergo inline static mixing with continuous temperature control to absorb exothermic mixing heat safely.
Surfactant & Dye Dosing
VFD-controlled magnetic drive metering pumps inject amine ethoxylate thickeners and blue acid-stable dyes under low-shear agitation to prevent foaming.
Automated Bottle Filling
Pneumatic PTFE-nozzle rotary filling machine with enclosed exhaust hood ducting to an online packed scrubber, packaging up to 120 bottles per minute.
All piping manifolds are engineered using PVDF or PP material, supported by FRP structural pipe hangers to eliminate atmospheric corrosion risks. By integrating motorized pneumatic control valves with Coriolis mass flow meters, the PLC panel maintains blending accuracy within ±0.1%, ensuring product viscosity and active ingredient consistency across every production batch.
Thermodynamics of Acid Dilution & Cooling Duty Calculations
When diluting 33% Commercial HCl to 10% target product strength, the release of hydration enthalpy elevates batch fluid temperature rapidly:
Thermodynamic Heat Generation & Cooling Duty
Heat Generation (Q_mix) = m_acid × ΔH_dilution [kJ/hr]
Cooling Coil Sizing Equation:
Required Surface Area (A) = Q_mix / (U × ΔT_lm)
U = Overall Heat Transfer Coeff (W/m²·K) | ΔT_lm = Logarithmic Mean Temperature Difference
Uncontrolled thermal spikes above 55°C cause rapid HCl gas off-gassing, creating hazardous vapor clouds and degrading the surfactant viscosity agents, which leads to batch separation. To prevent this, GPPL equips dilution tanks with internal PVDF cooling coils or external graphite heat exchangers linked to a industrial water chiller system, keeping batch temperatures below 35°C throughout the process.
Materials of Construction (MoC) Selection for Acid Resilience
Selecting the correct material of construction (MoC) is critical to prevent chemical corrosion and mechanical fatigue across the plant:
| Plant Component | Process Fluid Exposure | Specified Material of Construction |
|---|---|---|
| Bulk Acid Storage Tank | 33% Commercial HCl | PP-H Inner Liner + Vinyl Ester FRP Outer Shell |
| Dilution & Mixing Reactor | 10% HCl + Surfactant @ 45°C | Dual Laminate PP-FRP with internal PVDF Cooling Coils |
| Transfer & Dosing Pumps | Hot Acid & Surfactants | Sealless Magnetic Drive Pumps (ETFE / PVDF Lined) |
| Filling Nozzles & Valves | Final Toilet Cleaner Liquid | Solid PTFE (Teflon) / Hastelloy C-276 trim |
PP-H backed by structural fiberglass provides the optimum combination of chemical compatibility and external mechanical strength. Unlike metal tanks that require constant thickness testing, PP-FRP dual-laminate vessels do not suffer from chemical corrosion, providing an operating life exceeding 20 years in highly acidic conditions.
Commercial Case Study: 20,000 Bottles/Hour Fully Automated Line
The client's legacy manufacturing plant suffered from high acid fumes in the filling gallery, causing frequent equipment failure and high operator absenteeism. By engineering an enclosed automatic filling machine connected to an FRP wet scrubber tower, GPPL lowered ambient acid concentrations below 1 ppm. The integration of sealless magnetic drive pumps prevented acid leaks at pump shafts, creating a clean, safe, and productive manufacturing facility.
Safety Interlocks and Process Control Automation
Operating a high-capacity acidic blending facility requires a robust process control network integrated with fail-safe safety interlocks. The PLC automation system must monitor real-time temperature, flow rates, and tank levels, automatically shutting down feed pumps if parameters deviate from set points. In the event of a cooling water supply failure, the PLC triggers an automatic feed cutoff to prevent runaway exothermic heating. Enclosed process bays should be fitted with continuous ambient HCl gas sensors linked to the emergency exhaust ventilation system, automatically ramping up scrubber fan speeds if acid vapor concentrations exceed regulatory limits. By implementing these safety control loops, chemical plants can protect operators, protect capital equipment, and maintain high production efficiencies.
Engineering Conclusion & Turnkey Plant Execution
Building an efficient acidic toilet cleaner manufacturing plant requires seamless integration of polymer vessel fabrication, thermodynamics, and automation. Ghaziabad Polymers Pvt. Ltd. offers complete turnkey execution—from initial P&ID engineering and FRP tank fabrication to PLC panel programming and environmental compliance certification. Contact our industrial projects team to schedule a plant sizing consultation.
